- Model Name

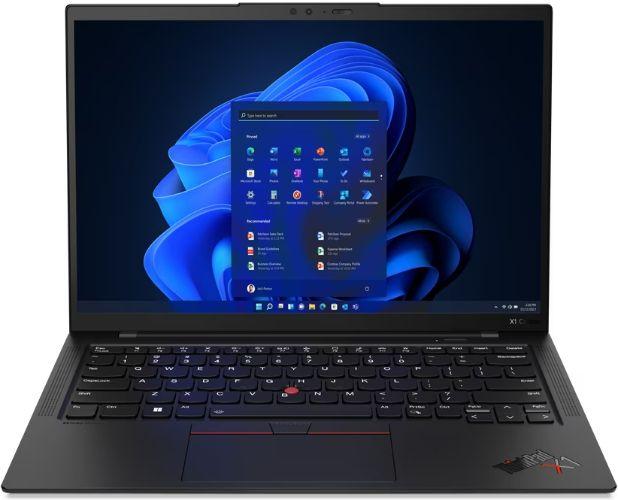

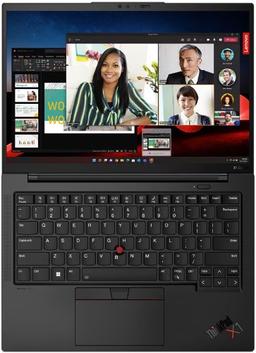

- Lenovo ThinkPad X1 Carbon (Gen 11) Laptop (14-inch)
- Operating System
- Windows OS
- #1
- Intel® Core™ i5-1335U Processor (1.3GHz Up to 4.6GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores (2 Performance Cores, 8 Efficient Cores), 12 Threads | Intel Iris® Xe Graphics
- #2
- Intel® Core™ i5-1340P Processor (1.9GHz Up to 4.6GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 12-Cores (4 Performance Cores, 8 Efficient Cores), 16 Threads | Intel Iris® Xe Graphics
- #3
- Intel® Core™ i5-1345U Processor (1.6GHz Up to 4.7GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores (2 Performance Cores, 8 Efficient Cores), 12 Threads | Intel Iris® Xe Graphics
- #4
- Intel® Core™ i7-1355U Processor (1.7GHz Up to 5.0GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores (2 Performance Cores, 8 Efficient Cores), 12 Threads | Intel Iris® Xe Graphics
- #5
- Intel® Core™ i7-1360P Processor (2.2GHz Up to 5.0GHz Max Turbo Frequency) 18 MB Intel® Smart Cache, 12-Cores (4 Performance Cores, 8 Efficient Cores), 16 Threads | Intel Iris® Xe Graphics
- #6
- Intel® Core™ i7-1365U Processor (1.8GHz Up to 5.2GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores (2 Performance Cores, 8 Efficient Cores), 12 Threads | Intel Iris® Xe Graphics
- #7
- Intel® Core™ i7-1370P Processor (1.9GHz Up to 5.2GHz Max Turbo Frequency) 24 MB Intel® Smart Cache, 14-Cores (6 Performance Cores, 8 Efficient Cores), 20 Threads | Intel Iris® Xe Graphics
- Memory
- 16GB RAM / 32GB RAM / 64GB RAM
- Storage
- 256GB SSD / 512GB SSD / 1TB SSD
- Card Reader
- No card reader
- Audio Chip
- High Definition (HD) Audio, Realtek® ALC3306 codec
- Speakers
- Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby® Atmos®
- Microphone
- Quad-microphone array, 360° far-field, Dolby Voice
- Camera Options
- FHD 1080p + IR discrete, with privacy shutter, MIPI, fixed focus, Computer Vision / FHD 1080p + IR hybrid, with privacy shutter, fixed focus / FHD 1080p, with privacy shutter, fixed focus / HD 720p, with privacy shutter, fixed focus
- Battery
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
- Keyboard
- 6-row, spill-resistant, air intake design, multimedia Fn keys with Unified Communications controls
- Keyboard Backlight
- LED backlight
- UltraNav™
- TrackPoint® pointing device and glass surface multi-touch touchpad, 56 x 110 mm (2.20 x 4.33 inches)
- Ethernet
- No onboard Ethernet
- WLAN + Bluetooth®
- Intel Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.3
- WWAN Options
- Wireless WAN upgradable to 4G or 5G (with antenna ready) / Fibocom L860-GL-16, 4G LTE CAT16, MIMO 4x4, M.2 card, with embedded eSIM functionality / Fibocom FM350-GL, 5G Sub-6 GHz, M.2 Card, with embedded eSIM functionality / No support
- Standard Ports
- 1x USB 3.2 Gen 1 | 1x USB 3.2 Gen 1 (Always On) | 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a) | 1x HDMI 2.1, up to 4K/60Hz | 1x Headphone / microphone combo jack (3.5mm)
- Optional Ports
- 1x Nano-SIM card slot (WWAN support models)
- Security Chip
- Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
- Physical Locks
- Kensington® Nano Security Slot™, 2.5 x 6 mm
- Smart Card Reader
- No smart card reader
- Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- BIOS Security
- Power-on password | Supervisor password | System management password | NVMe password | FIDO (Fast Identity Online) authentication | Certificate based BIOS authentication | Self-healing BIOS
- Other Security
- Camera privacy shutter | (Optional) IR camera for Windows Hello | (Optional) Privacy Guard with Privacy Alert | Glance by Mirametrix® | (Optional) Computer Vision-based User Presence Sensing including lock on leave
- Dimensions (W x D x H)
- Models with 720p camera; 315.6 x 222.5 x 14.96 mm (12.43 x 8.76 x 0.59 inches) / Models with other camera; 315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)
- Weight
- Starting at 1.12 kg (2.48 lbs)
