- Product name

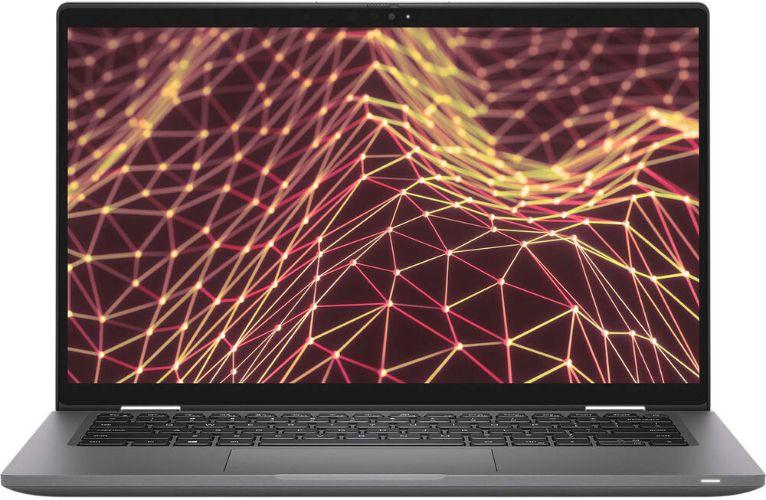

- Dell Latitude 7430 2-In-1 Laptop (14-inch)
- Model Name
- Dell Latitude 7430 2-in-1 Laptop (14-inch)
- DISPLAY TYPE OPTIONS
- Operating System
- Windows OS
- PROCESSOR & GRAPHIC OPTIONS
- #1
- Intel® Core™ i5-1235U Processor (1.3GHz Up To 4.4GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores 12 Threads | Intel® Iris® Xe Graphics eligible
- #2
- Intel® Core™ i5-1245U Processor (1.6GHz Up To 4.4GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores 12 Threads | Intel® Iris® Xe Graphics eligible
- #3
- Intel® Core™ i7-1265U Processor (1.8GHz Up To 4.8GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 10-Cores 12 Threads | Intel® Iris® Xe Graphics eligible
- #4
- Intel® Core™ i7-1270P Processor (3.5GHz Up To 4.8GHz Max Turbo Frequency) 18 MB Intel® Smart Cache, 12-Cores 16 Threads | Intel® Iris® Xe Graphics eligible
- #5
- Intel® Core™ i7-1255U Processor (1.7GHz Up to 4.7GHz Max Turbo Frequency) 12MB L3 Cache, 10-Cores 12-Threads | Intel® Iris® Xe Graphics eligible
- #6
- Intel® Core™ i5-1250P Processor (1.7GHz Up to 4.4GHz Max Turbo Frequency) 12MB Intel® Smart Cache, 12-Cores 16-Threads | Intel® Iris® Xe Graphics eligible
- Memory
- 8GB RAM | 16GB RAM | 32GB RAM
- #7
- Intel® Core™ i7-1265U Processor (1.8GHz Up to 4.8GHz Max Turbo Frequency) 12MB Intel® Smart Cache, 10-Cores 12-Threads | Intel® Iris® Xe Graphics eligible
- Storage
- 256GB SSD | 512GB SSD | 1TB SSD
- #8
- Intel® Core™ i5-1240P Processor (3.3GHz Up to 4.4GHz Max Turbo Frequency) 12 MB Intel® Smart Cache, 12 Cores 16 Threads | Intel® Iris® Xe Graphics
- Memory OPTIONS
- 4GB RAM / 8GB RAM / 16GB RAM / 32GB RAM
- Camera
- HD RGB camera | Camera type- 2.7 mm HD RGB webcam | Camera location- Front camera | Camera sensor type- CMOS sensor technology | Camera resolution- Still image 0.92 megapixel, Video 1280 x 720 (HD) at 30 fps
- Storage OPTIONS
- 128GB SSD / 256GB SSD / 512GB SSD / 1TB SSD / 2TB SSD / 4TB SSD
- External Ports
- USB ports; 2x USB Type-C Thunderbolt 4.0 ports with Power Delivery and DisplayPort 1.4 Alt mode, 1x USB 3.2 Gen 1 port with PowerShare | Audio port; 1x universal audio port | Video port/ports; 1x HDMI 2.0b/HDCP 2.2 port | SIM-card slot; 1x microSIM-card slot (optional) | Power-adapter port; 2x USB Type-C Thunderbolt 4.0 ports with Power Delivery | Security-cable slot; 1x wedge-shaped lock slot
- Internal Slots
- (M2); One M.2 3042 Key-B slot for WWAN (optional) | One M.2 2230/2280 slot for solid-state drive
- Keyboard
- Standard backlit keyboard / Standard non-backlit keyboard
- Wireless Model Number
- Intel AX211 | Transfer rate; Up to 2400 Mbps | Frequency bands supported; 2.40 GHz/5 GHz/6 GHz | Wireless standards; WiFi 802.11a/b/g, Wi-Fi 4 (WiFi 802.11n), Wi-Fi 5 (WiFi 802.11ac), Wi-Fi 6E (WiFi 802.11ax) | Encryption; 64-bit/128-bit WEP, AES-CCMP, TKIP | Bluetooth wireless card; Bluetooth 5.2
- Wireless Model number
- Intel AX211 | Transfer rate- Up to 2400 Mbps | Frequency bands supported- 2.40 GHz/5 GHz/6 GHz | Wireless standards- WiFi 802.11a/b/g, Wi-Fi 4 (WiFi 802.11n), Wi-Fi 5 (WiFi 802.11ac), Wi-Fi 6E (WiFi 802.11ax) | Encryption- 64-bit/128-bit WEP, AES-CCMP, TKIP | Bluetooth 5.2
- Audio controller
- Realtek ALC3281-CG | Stereo conversion; Supported | Internal audio interface; High definition audio interface | External audio interface; One universal audio port | Number of speakers; Two | Internal-speaker amplifier; Not supported | External volume controls; Keyboard shortcut controls | Speaker output; Average 2 W, Peak 2.5 W | Microphone; Dual-array microphones
- Keyboard type (QWERTY) OPTIONS
- Standard backlit keyboard / Standard non-backlit keyboard
- Internal Slots (M.2)
- 1x M.2 3042 Key-B slot for WWAN (optional) | 1x M.2 2230/2280 slot for solid-state drive
- Camera Type
- HD RGB camera | Location; Front Camera | Camera sensor type; CMOS sensor technology
- Dimensions & Weight
- Front height 17.27 mm (0.68 in.), Rear height 18.88 mm (0.74 in.) x Width 321.35 mm (12.65 in.) x Depth 208.69 mm (8.22 in.)
- Touchpad resolution
- Horizontal >= 300 dpi, Vertical >= 300 dpi | Touchpad dimensions; Horizontal 115 mm (4.52 in.), Vertical 65 mm (2.56 in.)
- Weight (minimum)
- 1.22 kg (2.69 lb)
- Sensor
- Ambient Light Sensor | IR User Proximity Detection | Digital Compass (Magnetometer) | Accelerometer | Gyrometer | Adaptive Thermal Performance (Laptop vs. Desktop mode) requires Gyrometer/Accelerometer (NOTE; This is for thermal only.) | Proximity for SAR compliance (for the WWAN module) Near Field Proximity Sensor | Hall Effect Sensor
- Hardware Security
- Trusted Platform Module (TPM) 2.0 discrete | FIPS 140-2 certification for TPM | Trusted Computing Group (TCG) Certification for TPM | Contacted smart card and Control vault 3 | Contactless smart card, NFC, and Control vault 3 | SED SSD NVMe, SSD and HDD (Opal and non-Opal) per SDL | Fingerprint reader in power button tied to Control vault 3 | One wedge-shaped lock slot | SED (Opal 2.0 only - PCIe Interface) | Windows Hello - Fingerprint Reader (optional) | Mechanical privacy shutter for camera (only for aluminum titan gray laptops)
- Dimensions
- Starting at - Front Height; 16.40 mm (0.65 in.), Rear Height; 18.70 mm (0.73 in.) x Width; 321.35 mm (12.65 in.) x Depth; 208.69 mm (8.22 in.)
- Weight
- Starting at 1.35 kg (2.97 lb)
